Using Gmail/GSuite SMTP OAUTH with Service Account

The Gmail/GSuite IMAP and SMTP servers have been extended to support authorization via the industry-standard OAuth 2.0 protocol. Using OAUTH protocol, user can do authentication by Gmail Web OAuth instead of inputting user and password directly in application.

You can click here to learn more detail about "OAUTH/XOAUTH2 with Gmail SMTP Server".

Google Service Account

Normal OAUTH requires user input user/password for authentication. Obviously, it is not suitable for background service. In this case, you should use google service account to access G Suite email service without user interaction. Service account only works for G Suite user, it doesn't work for personal Gmail account.

Create your project in Google Developers Console

To use "G Suite Service Account OAUTH" in your application, you should create a project in Google Developers Console at first.

Important Notice: You can use any google user to create service account, it doesn't require service account owner is a user in G Suite. But G Suite administrator must authorize service account in G Suite Admin Console to access user mailbox.

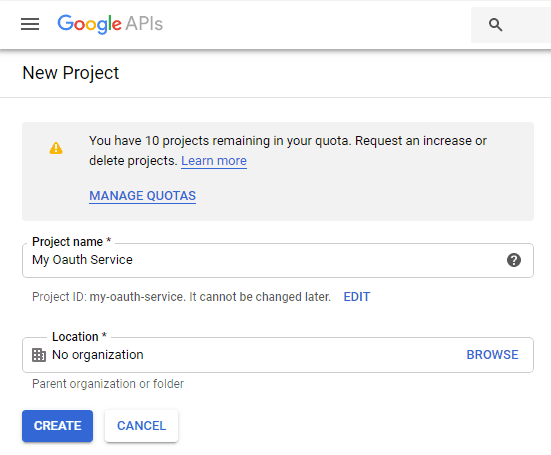

Open Google Developer Console, create a new project by https://console.developers.google.com/projectcreate.

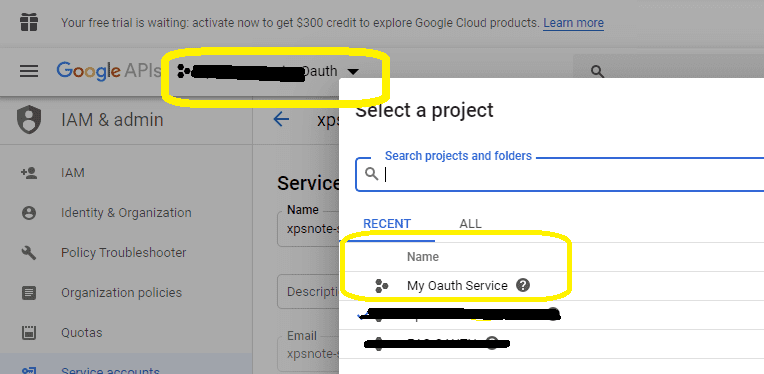

After you created the project, select it from projects list as current project.

Create service account under current project

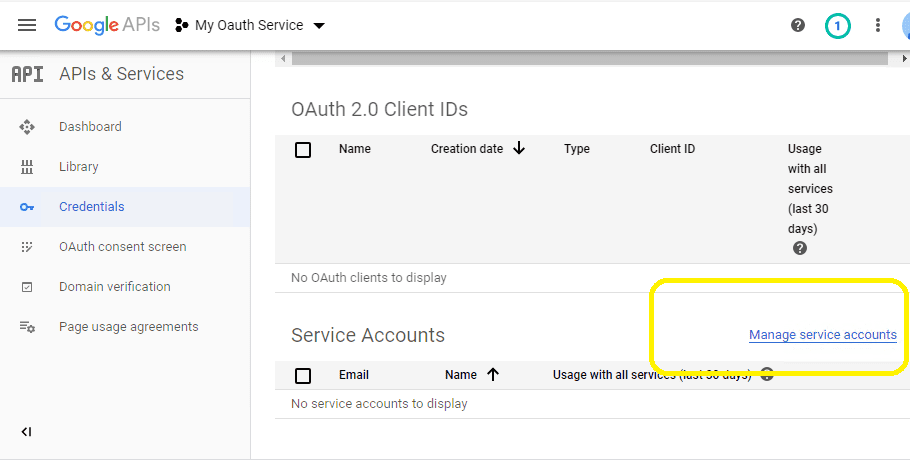

Click "Credentials" -> "Manage service accounts"

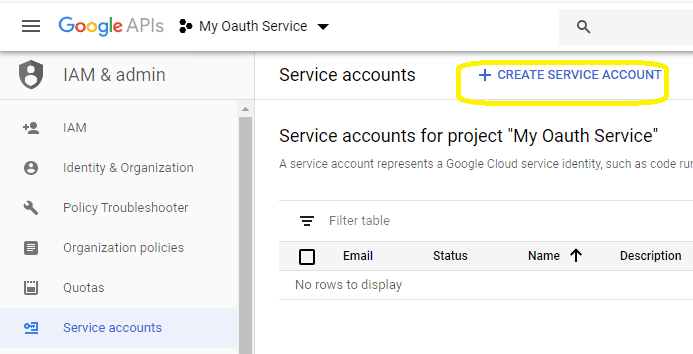

Click "CREATE SERVICE ACCOUNT"

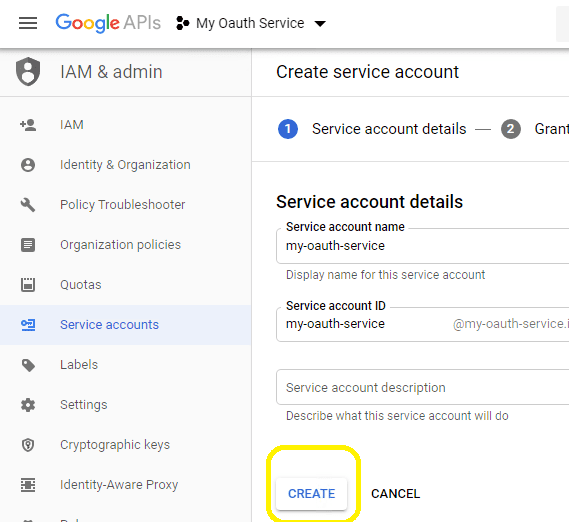

Input a name for your service account, click "CREATE"

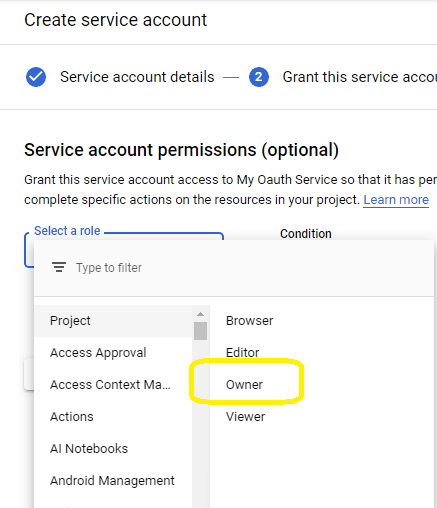

In "Service account permissions", select "Project" -> "Owner" as role

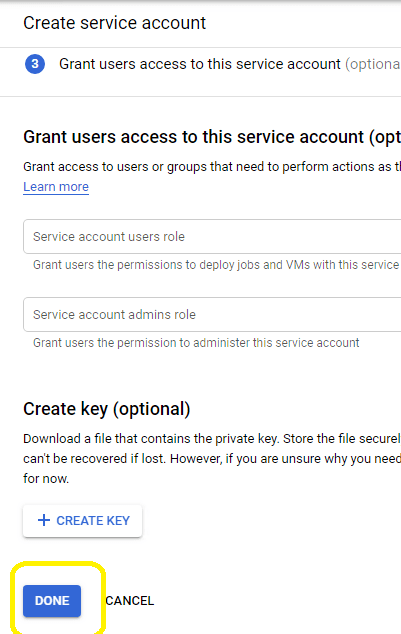

In "Grant users access to this service account", keep everything default and click "DONE"

Enable Gmail API

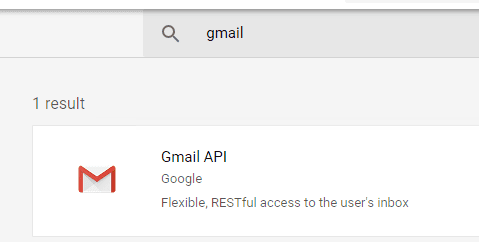

Enable Gmail API in "Library" -> Search "Gmail", then click "Gmail API" and enable it. If you use Gmail API protocol to send email, you should enable this API, if you use SMTP protocol, you don't have to enable it.

After service account is created, you should enable "Domain-wide delegation" and create service key pair to access G Suite user mailbox.

Enable "Domain-wide delegation" and create service key

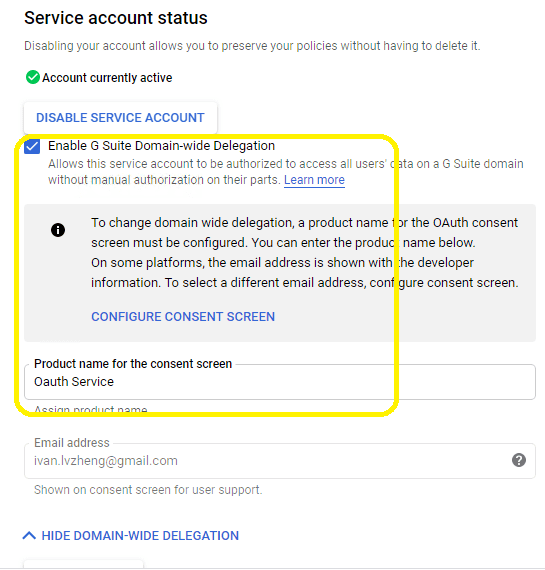

Go back to your service account, click "Edit" -> "SHOW DOMAIN-WIDE DELEGATION", check "Enable G Suite Domain-wide Delegation", input a name for product oauth consent, click "Save".

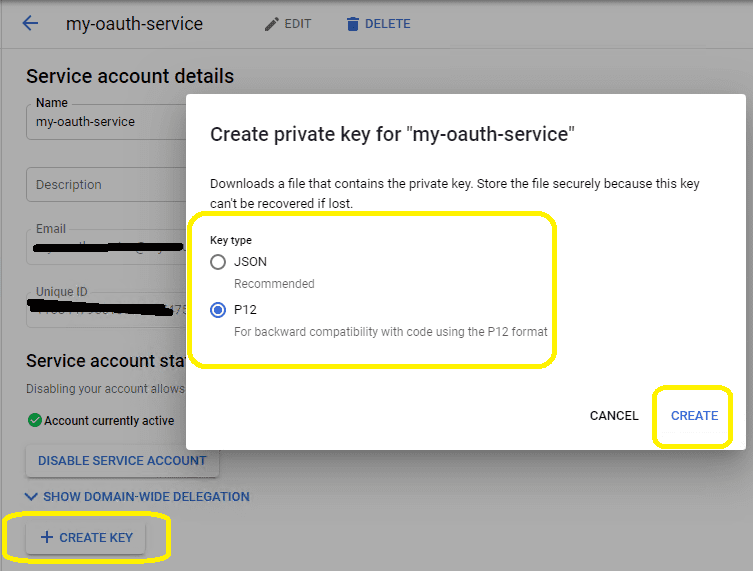

Go back to your service account again, click "Create Key", you can select "p12" or "json" key type, both can work well, then you will get a file which contains private key, save the file to local disk.

Now you have created service account with key pair successfully. You can use created private key in your codes to request "access token" impersonating a user in G Suite.
To access user data in G Suite, you must get authorization from G Suite administrator. You should go to service accounts list, click "View Client ID" like this:

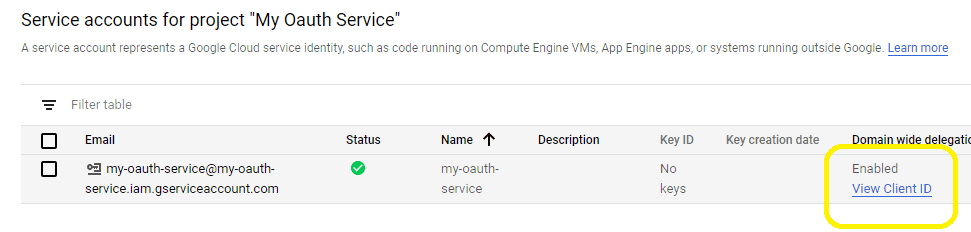

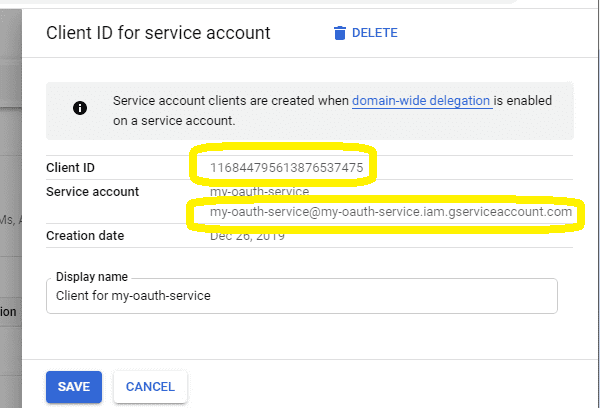

Then record your "Client ID" and service account email address, forward it to G Suite administrator for authorization.

Authorize service account by G Suite administrator

To use service account to access user mailbox in G Suite, G Suite Administrator should authorize specified service account at first.

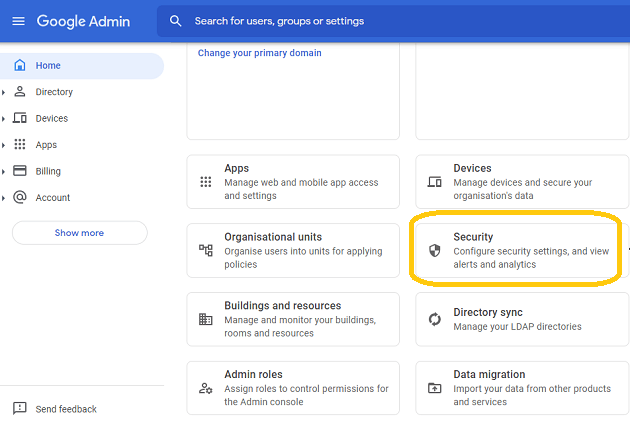

G Suite Administrator should open admin.google.com, go to Admin Console, click "Security" -> API Control
Click Add new and enter your service account client ID;
In OAuth Scopes, add each scope that the application can access (should be appropriately narrow). and input "https://mail.google.com/", "email", "profile" in One or More API Scopes, click "Authorize".

If you use Gmail API protocol instead of SMTP protocol, input: "https://www.googleapis.com/auth/gmail.send,email,profile".

After G Suite administrator authorized service account, you can use it to access any users mailbox in G Suite domain.

Use service account to send email impersonating user in G Suite Domain

The following examples demonstrate how to send email with service account + G Suite OAUTH

Example

[VB6 - Use service account to send email impersonating user in G Suite Domain]

Const ConnectNormal = 0
Const ConnectSSLAuto = 1
Const ConnectSTARTTLS = 2
Const ConnectDirectSSL = 3
Const ConnectTryTLS = 4

Const AuthAuto = -1
Const AuthLogin = 0
Const AuthNtlm = 1
Const AuthCramMd5 = 2
Const AuthPlain = 3
Const AuthMsn = 4
Const AuthXoauth2 = 5

Const CRYPT_MACHINE_KEYSET = 32
Const CRYPT_USER_KEYSET = 4096

Private Function GenerateRequestData(GsuiteUser)

    GenerateRequestData = ""

    ' service account email address
    Const serviceAccount = "xxxxxx@xxxxxx.iam.gserviceaccount.com"
    Const scope = "https://mail.google.com/"
    Const aud = "https://oauth2.googleapis.com/token"

    Dim jwt As New EASendMailObjLib.SimpleJsonParser

    Dim header, playload
    header = jwt.JwtBase64UrlEncode("{""alg"":""RS256"",""typ"":""JWT""}")

    Dim iat, exp
    ' token request timestamp
    iat = jwt.GetCurrentIAT()
    ' token expiration time
    exp = iat + 3600

    playload = "{"
    playload = playload & """iss"":""" & serviceAccount & ""","
    playload = playload & """scope"":""" & scope & ""","
    playload = playload & """aud"":""" & aud & ""","
    playload = playload & """exp"":" & exp & ","
    playload = playload & """iat"":" & iat & ","
    playload = playload & """sub"":""" & gsuiteUser & """"
    playload = playload & "}"

    playload = jwt.JwtBase64UrlEncode(playload)

    Dim cert As New EASendMailObjLib.Certificate

    ' In web application, use CRYPT_MACHINE_KEYSET
    If Not cert.LoadPFXFromFile("D:\myfolder\myoauth-77dec4d192ec.p12", "notasecret", CRYPT_USER_KEYSET) Then
        MsgBox "Failed to load service account certificate!"
        Exit Function
    End If

    Dim signature
    signature = jwt.SignRs256(cert, header & "." & playload)
    If signature = "" Then
        MsgBox "Failed to sign request data!"
        Exit Function
    End If

    Dim dataToPost

    dataToPost = header & "." & playload & "." & signature
    GenerateRequestData = dataToPost

End Function

Private Function RequestAccessToken(requestData)
    RequestAccessToken = ""

    If requestData = "" Then
        Exit Function
    End If

On Error GoTo ErrorHandle

    Dim httpRequest
    Set httpRequest = CreateObject("MSXML2.ServerXMLHTTP")

    requestData = "grant_type=urn%3Aietf%3Aparams%3Aoauth%3Agrant-type%3Ajwt-bearer&assertion=" & requestData

    httpRequest.setOption 2, 13056
    httpRequest.Open "POST", "https://oauth2.googleapis.com/token", True
    httpRequest.setRequestHeader "Content-Type", "application/x-www-form-urlencoded"
    httpRequest.Send requestData

    Do While httpRequest.ReadyState <> 4
        DoEvents
        httpRequest.waitForResponse (1)
    Loop

    Dim Status
    Status = httpRequest.Status

    If Status < 200 Or Status >= 300 Then
        MsgBox "Failed to get access token from server."
        MsgBox httpRequest.responseText
        Exit Function
    End If

    Dim result
    result = httpRequest.responseText

    Dim oauthParser As New EASendMailObjLib.OAuthResponseParser
    oauthParser.Load result

    Dim accessToken
    accessToken = oauthParser.AccessToken

    If accessToken = "" Then
        MsgBox "Failed to parse access token from server response."
        Exit Function
    End If

    RequestAccessToken = accessToken
    Exit Function

ErrorHandle:
    MsgBox "Failed to request access token." & Err.Description

End Function

Private Sub SendEmail(GsuiteUser As String)
    ' GsuiteUser is the full email address of the user in GSuite, user@gsuitedomain

    Dim access_token As String
    ' request access token from Google server by service account
    ' withou user interaction
    access_token = RequestAccessToken(GenerateRequestData(GsuiteUser))

    If access_token = "" Then
        Exit Sub
    End If

    Dim oSmtp As EASendMailObjLib.Mail
    Set oSmtp = New EASendMailObjLib.Mail
    oSmtp.LicenseCode = "TryIt"

    oSmtp.ServerAddr = "smtp.gmail.com"
    oSmtp.ServerPort = 587

    ' Enable SSL/TLS connection
    oSmtp.ConnectType = ConnectSSLAuto

    ' Gmail OAUTH/XOAUTH2 type
    oSmtp.AuthType = AuthXoauth2
    oSmtp.UserName = GsuiteUser
    oSmtp.Password = access_token

    oSmtp.FromAddr = GsuiteUser
    oSmtp.AddRecipient "Support Team", "support@emailarchitect.net", 0

    oSmtp.BodyText = "Hello, this is a test...."
    If oSmtp.SendMail() = 0 Then
        MsgBox "Message delivered!"
    Else
        MsgBox oSmtp.GetLastErrDescription()
    End If

End Sub


[Visual C++ - Use service account to send email impersonating user in G Suite Domain]

#include "pch.h"
#include <tchar.h>
#include <Windows.h>

#include "EASendMailObj.tlh"
using namespace EASendMailObjLib;

#include "msxml3.tlh"
using namespace MSXML2;

const int ConnectNormal = 0;
const int ConnectSSLAuto = 1;
const int ConnectSTARTTLS = 2;
const int ConnectDirectSSL = 3;
const int ConnectTryTLS = 4;

const int AuthAuto = -1;
const int AuthLogin = 0;
const int AuthNtlm = 1;
const int AuthCramMd5 = 2;
const int AuthPlain = 3;
const int AuthMsn = 4;
const int AuthXoauth2 = 5;

BOOL RequestAccessToken(const TCHAR* requestData, _bstr_t &accessToken)
{
    try
    {
        IServerXMLHTTPRequestPtr httpRequest = NULL;
        httpRequest.CreateInstance(__uuidof(MSXML2::ServerXMLHTTP));
        if (httpRequest == NULL)
        {
            _tprintf(_T("Failed to create XML HTTP Object, please make sure you install MSXML 3.0 on your machine.\r\n"));
            return FALSE;
        }

        _bstr_t fullRequest = _bstr_t("grant_type=urn%3Aietf%3Aparams%3Aoauth%3Agrant-type%3Ajwt-bearer&assertion=") + requestData;

        const char* postData = (const char*)fullRequest;
        LONG cdata = strlen(postData);
        LPSAFEARRAY	psaHunk = ::SafeArrayCreateVectorEx(VT_UI1, 0, cdata, NULL);
        for (LONG k = 0; k < (int)cdata; k++)
        {
            BYTE ch = (BYTE)postData[k];
            ::SafeArrayPutElement(psaHunk, &k, &ch);
        }

        _variant_t requestBuffer;
        requestBuffer.vt = (VT_ARRAY | VT_UI1);
        requestBuffer.parray = psaHunk;

        _variant_t async(true);
        _bstr_t uri(_T("https://oauth2.googleapis.com/token"));

        httpRequest->setOption((MSXML2::SERVERXMLHTTP_OPTION)2, 13056);
        httpRequest->open(L"POST", uri, async, vtMissing, vtMissing);
        httpRequest->setRequestHeader(L"Content-Type", L"application/x-www-form-urlencoded");
        httpRequest->send(requestBuffer);

        while (httpRequest->readyState != 4) {
            httpRequest->waitForResponse(1);
        }

        long status = httpRequest->status;
        _bstr_t responseText = httpRequest->responseText;

        if (status < 200 || status >= 300)
        {
            _tprintf(_T("Failed to get access token from server: %d %s\r\n"), status, (const TCHAR*)responseText);
            return FALSE;
        }

        IOAuthResponseParserPtr oauthParser = NULL;
        oauthParser.CreateInstance(__uuidof(EASendMailObjLib::OAuthResponseParser));
        oauthParser->Load(responseText);

        accessToken = oauthParser->AccessToken;
        if (accessToken.length() == 0)
        {
            _tprintf(_T("Failed to parse access token from server response: %d %s\r\n"), status, (const TCHAR*)responseText);
            return FALSE;
        }

        return TRUE;
    }
    catch (_com_error &ep)
    {
        _tprintf(_T("Failed to get access token: %s"), (const TCHAR*)ep.Description());
        return FALSE;
    }
}

BOOL GenerateRequestData(const TCHAR* gsuiteUser, _bstr_t &requestData)
{
    // service account email address
    const TCHAR* serviceAccount = _T("xxxx@xxxx.iam.gserviceaccount.com");
    const TCHAR* scope = _T("https://mail.google.com/");
    const TCHAR* aud = _T("https://oauth2.googleapis.com/token");

    ISimpleJsonParserPtr jwtPtr = NULL;
    jwtPtr.CreateInstance(__uuidof(EASendMailObjLib::SimpleJsonParser));

    _bstr_t header = jwtPtr->JwtBase64UrlEncode(_T("{\"alg\":\"RS256\",\"typ\":\"JWT\"}"));

    // token request timestamp
    long iat = jwtPtr->GetCurrentIAT();
    // token expiration time
    long exp = iat + 3600;

    TCHAR iatBuf[MAX_PATH + 1];
    TCHAR expBuf[MAX_PATH + 1];

    _stprintf_s(iatBuf, MAX_PATH, _T("%d"), iat);
    _stprintf_s(expBuf, MAX_PATH, _T("%d"), exp);

    _bstr_t playload = _bstr_t("{");
    playload += _bstr_t("\"iss\":\"") + _bstr_t(serviceAccount) + _bstr_t("\",");
    playload += _bstr_t("\"scope\":\"") + _bstr_t(scope) + _bstr_t("\",");
    playload += _bstr_t("\"aud\":\"") + _bstr_t(aud) + _bstr_t("\",");
    playload += _bstr_t("\"exp\":") + _bstr_t(expBuf) + _bstr_t(",");
    playload += _bstr_t("\"iat\":") + _bstr_t(iatBuf) + _bstr_t(",");
    playload += _bstr_t("\"sub\":\"") + _bstr_t(gsuiteUser) + _bstr_t("\"");
    playload += _bstr_t("}");

    playload = jwtPtr->JwtBase64UrlEncode(playload);

    ICertificatePtr cert = NULL;
    cert.CreateInstance(__uuidof(EASendMailObjLib::Certificate));

    // In web application, use CRYPT_MACHINE_KEYSET
    if (cert->LoadPFXFromFile(_T("D:\\MyData\\oauth-77dac4d192ec.p12"),
        _T("notasecret"), CRYPT_USER_KEYSET) == VARIANT_FALSE)
    {
        _tprintf(_T("Failed to load service account certificate!"));
        return FALSE;
    }

    _bstr_t signature = jwtPtr->SignRs256(cert, header + _bstr_t(".") + playload);
    if (signature.length() == 0)
    {
        _tprintf(_T("Failed to sign request data!"));
        return FALSE;
    }

    requestData = header + _bstr_t(".") + playload + _bstr_t(".") + signature;
    return TRUE;
}

void SendEmail(const TCHAR* gsuiteUser)
{
    ::CoInitialize(NULL);

    // gsuiteUser is the full email address of the user in GSuite, for example: user@gsuitedomain
    _bstr_t requestData, accessToken;
    if (!GenerateRequestData(gsuiteUser, requestData))
    {
        return;
    }

    // request access token from Google server by service account
    // withou user interaction
    if (!RequestAccessToken((const TCHAR*)requestData, accessToken))
    {
        return;
    }

    IMailPtr oSmtp = NULL;
    oSmtp.CreateInstance(__uuidof(EASendMailObjLib::Mail));
    oSmtp->LicenseCode = _T("TryIt");

    oSmtp->ServerAddr = _T("smtp.gmail.com");
    oSmtp->ServerPort = 587;

    // Enable SSL/TLS connection
    oSmtp->ConnectType = ConnectSSLAuto;

    // Gmail OAUTH type
    oSmtp->AuthType = AuthXoauth2;
    oSmtp->UserName = gsuiteUser;
    oSmtp->Password = accessToken;

    oSmtp->FromAddr = gsuiteUser;
    oSmtp->AddRecipient(_T("Support Team"),
        _T("support@emailarchitect.net"), 0);

    oSmtp->BodyText = _T("Hello, this is a test....");
    if (oSmtp->SendMail() == 0)
        _tprintf(_T("Message delivered!"));
    else
        _tprintf((const TCHAR*)oSmtp->GetLastErrDescription());
}



[Delphi - Use service account to send email impersonating user in G Suite Domain]

const
    ConnectNormal = 0;
    ConnectSSLAuto = 1;
    ConnectSTARTTLS = 2;
    ConnectDirectSSL = 3;
    ConnectTryTLS = 4;

    AuthAuto = -1;
    AuthLogin = 0;
    AuthNtlm = 1;
    AuthCramMd5 = 2;
    AuthPlain = 3;
    AuthMsn = 4;
    AuthXoauth2 = 5;

    CRYPT_MACHINE_KEYSET = 32;
    CRYPT_USER_KEYSET = 4096;

function TForm1.RequestAccessToken(requestData: WideString): WideString;
var
  httpRequest: TServerXMLHTTP;
  oauthParser: TOAuthResponseParser;
  fullRequest: OleVariant;
  status: integer;
  responseText: WideString;
  accessToken: WideString;
begin
    result := '';
    httpRequest := TServerXMLHTTP.Create(Application);

    fullRequest := 'grant_type=urn%3Aietf%3Aparams%3Aoauth%3Agrant-type%3Ajwt-bearer&assertion=';
    fullRequest := fullRequest + requestData;

    httpRequest.setOption(2, 13056);
    httpRequest.open('POST', 'https://oauth2.googleapis.com/token', true);
    httpRequest.setRequestHeader('Content-Type', 'application/x-www-form-urlencoded');
    httpRequest.send(fullRequest);

    while( httpRequest.readyState <> 4 ) do
    begin
      try
        httpRequest.waitForResponse(1);
        Application.ProcessMessages();
      except
        ShowMessage('Server response timeout (access token).');
        exit;
      end;
    end;

    status := httpRequest.status;
    responseText := httpRequest.responseText;

    if (status < 200) or (status >= 300) then
    begin
        ShowMessage('Failed to get access token from server.' + responseText);
      exit;
    end;

    oauthParser := TOAuthResponseParser.Create(Application);
    oauthParser.Load(responseText);

    accessToken := oauthParser.AccessToken;

    if accessToken = '' then
    begin
        ShowMessage('Failed to parse access token from server response.');
        exit;
    end;

    result := accessToken;
end;

function TForm1.GenerateRequestData(gsuiteUser: WideString): WideString;
const
  // service account email address
  serviceAccount: WideString = 'xxxx@xxxx.iam.gserviceaccount.com';
  scope: WideString = 'https://mail.google.com/';
  aud: WideString = 'https://oauth2.googleapis.com/token';
var
  jwt: TSimpleJsonParser;
  cert: TCertificate;
  pfxPath: WideString;
  header: WideString;
  playload: WideString;
  signature: WideString;
  iat, exp: integer;
begin
  result := '';

  SetThreadLocale(GetSystemDefaultLCID());

  jwt := TSimpleJsonParser.Create(application);

  header := jwt.JwtBase64UrlEncode('{"alg":"RS256","typ":"JWT"}');

  // token request timestamp
  iat := jwt.GetCurrentIAT();
  // token expiration time
  exp := iat + 3600;

  playload := '{';
  playload := playload + '"iss":"' + serviceAccount + '",';
  playload := playload + '"scope":"' + scope + '",';
  playload := playload + '"aud":"' + aud + '",';
  playload := playload + '"exp":' + IntToStr(exp) + ',';
  playload := playload + '"iat":' + IntToStr(iat) + ',';
  playload := playload + '"sub":"' + gsuiteUser + '"';
  playload := playload + '}';

  playload := jwt.JwtBase64UrlEncode(playload);

  cert := TCertificate.Create(application);

  // load service account certificate to sign request data
  pfxPath := 'D:\MyData\GSuite\outh-77aec4d192ec.p12';
  if not cert.LoadPFXFromFile(pfxPath, 'notasecret', CRYPT_USER_KEYSET) then
    begin
      ShowMessage('Failed to load certificate!');
      exit;
    end;

  signature := jwt.SignRs256(cert.DefaultInterface, header + '.' + playload);
  if signature = '' then
    begin
      ShowMessage('Failed to sign request data!');
      exit;
    end;

  result := header + '.' + playload + '.' + signature;
end;

procedure TForm1.SendEmail(gsuiteUser: string);
var
  oSmtp : TMail;
  accessToken: WideString;
begin
  // request access token with service account
  // gsuiteUser is the full email address of the user in GSuite, for example: user@gsuitedomain
  accessToken := RequestAccessToken(GenerateRequestData(gsuiteUser));
  if accessToken = '' then
    exit;

  oSmtp := TMail.Create(Application);
  oSmtp.LicenseCode := 'TryIt';

  // Gmail SMTP server address
  oSmtp.ServerAddr := 'smtp.gmail.com';
  oSmtp.ServerPort := 587;

  // Enable SSL/TLS connection
  oSmtp.ConnectType := ConnectSSLAuto;

  // Gmail OAUTH type
  oSmtp.AuthType := AuthXoauth2;
  oSmtp.UserName := email;
  oSmtp.Password := accessToken;

  // Set sender email address
  oSmtp.FromAddr := email;

  // Add recipient email address
  oSmtp.AddRecipientEx('support@emailarchitect.net', 0);

  // Set email subject
  oSmtp.Subject := 'simple email from Delphi project';

  // Set email body
  oSmtp.BodyText := 'this is a test email sent from Delphi project, do not reply';

  ShowMessage('start to send email ...');

  if oSmtp.SendMail() = 0 then
    ShowMessage('email was sent successfully!')
  else
    ShowMessage('failed to send email with the following error: '
    + oSmtp.GetLastErrDescription());

end;

end.

Remarks

You don't have to request access token every time, once you get an access token, it is valid within 3600 seconds.

If you don't want to use OAUTH 2.0, Gmail also supports traditional ESMTP authentication, but you need to enable Allowing less secure apps or Sign in using App Passwords.

Remarks

If you don't want to use OAUTH 2.0, Gmail also supports traditional ESMTP authentication, but you need to enable Allowing less secure apps or Sign in using App Passwords.

Online Example

VB6 - Send Email using Google/Gmail OAuth 2.0 Authentication
VB6 - Send Email using Gmail/G Suite OAuth 2.0 in Background Service (Service Account)
VB6 - Send Email using Microsoft OAuth 2.0 (Modern Authentication) from Hotmail/Outlook Account
VB6 - Send Email using Microsoft OAuth 2.0 (Modern Authentication) + EWS Protocol from Office 365 Account
VB6 - Send Email using Microsoft OAuth 2.0 (Modern Authentication) + EWS Protocol from Office 365 in Background Service

Delphi - Send Email using Google/Gmail OAuth 2.0 Authentication
Delphi - Send Email using Gmail/G Suite OAuth 2.0 in Background Service (Service Account)
Delphi - Send Email using Microsoft OAuth 2.0 (Modern Authentication) from Hotmail/Outlook Account
Delphi - Send Email using Microsoft OAuth 2.0 (Modern Authentication) + EWS Protocol from Office 365 Account
Delphi - Send Email using Microsoft OAuth 2.0 (Modern Authentication) + EWS Protocol from Office 365 in Background Service

Visual C++ - Send Email using Google/Gmail OAuth 2.0 Authentication
Visual C++ - Send Email using Gmail/G Suite OAuth 2.0 in Background Service (Service Account)
Visual C++ - Send Email using Microsoft OAuth 2.0 (Modern Authentication) from Hotmail/Outlook Account
Visual C++ - Send Email using Microsoft OAuth 2.0 (Modern Authentication) + EWS Protocol from Office 365 Account
Visual C++ - Send Email using Microsoft OAuth 2.0 (Modern Authentication) + EWS Protocol from Office 365 in Background Service
