Enable DKIM by using Powershell in Exchange Server or IIS SMTP Service¶
After you installed EA DKIM Plugin on your server, a PowerShell module is provided as well. You can use this module to create/edit/enable/disable/remove DKIM directly in PowerShell instead of using DKIM manager.

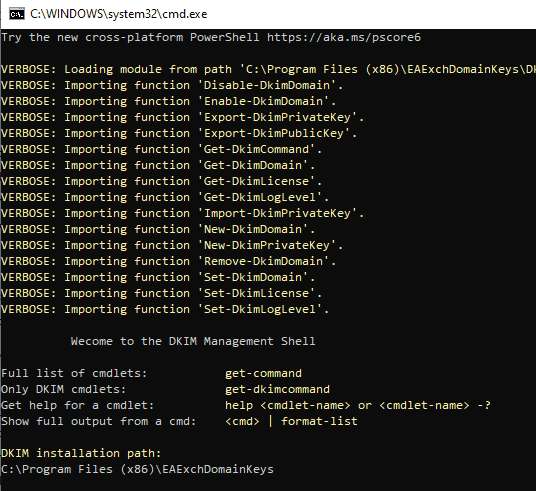

Start DKIM Management Shell¶
You can open “DKIM Management Shell” from Windows Start menu -> All Programs -> EA DKIM for IIS SMTP and Exchange Server.
Or you can start it from C:\Program Files (x86)\EAExchDomainKeys\StartDkimShell.cmd.
Now you can use the following cmdlets to manage DKIM for your domains.
New-DkimDomain¶
The New-DkimDomain cmdlet creates a new domain in Dkim Manager.
SYNTAX
New-DkimDomain [-Name] <String> [[-Selector] <String>] [[-PrivateKey] <String>]
[[-Use1024Key] <Boolean>] [[-IsActive] <Boolean>] [<CommonParameters>]
# New-DkimDomain examples
New-DkimDomain "emailarchitect.net"
# This command creates a new domain named "emailarchitect.net" with default selector "s1024".
New-DkimDomain "emailarchitect.net" -Selector "selector1"
# This command creates a new domain named "emailarchitect.net" with selector 'selector1'.
New-DkimDomain "emailarchitect.net" -Selector "s1024" -PrivateKey (Import-DkimPrivateKey "c:\myfolder\privatekey.pem")
# This command creates a new domain named "emailarchitect.net" with selector 's1024', and it uses the private key imported from privatekey.pem.
New-DkimDomain "emailarchitect.net" -Use1024Key $false
# This command creates domain "emailarchitect.net" with 2048 private key.
help New-DkimDomain -detailed
# This command gets detailed parameters information.
Set-DkimDomain¶
The Set-DkimDomain cmdlet sets DKIM properties of specified domain in Dkim Manager.
SYNTAX
Set-DkimDomain [-Name] <String> [[-Selector] <String>] [[-PrivateKey] <String>]
[[-IsActive] <Boolean>] [[-CanonAlgorithm] <Int32>] [[-RsaHashAlgorithm] <Int32>]
[[-IsSignPartOfMessage] <Boolean>] [[-IsSignDeliveryReport] <Boolean>]
[[-IsSignPartOfDeliveryReport] <Boolean>] [[-IsSignSystemMessage] <Boolean>]
[[-IsSignMapiMessage] <Boolean>] [[-IsRemoveExistedSignature] <Boolean>] [<CommonParameters>]
# Set-DkimDomain examples
Set-DkimDomain "emailarchitect.net" -IsActive $false
# This command changes "IsActive" property value to $false
Set-DkimDomain "emailarchitect.net" -CanonAlgorithm 0
# This command changes "CanonAlgorithm" property value to simple. 0: relaxed; 1: simple
Set-DkimDomain "emailarchitect.net" -RsaHashAlgorithm 1
# This command changes "RsaHashAlgorithm" property value to rsa-sha256. 0: rsa-sha1; 1: rsa-sha256;
Set-DkimDomain "emailarchitect.net" -IsSignPartOfMessage $true
# This command changes "IsSignPartOfMessage" property value to $true
Set-DkimDomain "emailarchitect.net" -PrivateKey (New-DkimPrivateKey)
# This command set a new private key generated by New-DkimPrivateKey.
Set-DkimDomain "emailarchitect.net" -PrivateKey (Import-DkimPrivateKey "c:\myfolder\privatekey.pem")
# This command set a new private key imported from privatekey.pem.
help Set-DkimDomain -detailed
# This command gets detailed parameters information.
Get-DkimDomain¶
The Get-DkimDomain cmdlet queries domain(s) from Dkim Manager based on the domain name, wildcard is supported in domain name. It returns a domain(s) objects array.
SYNTAX
Get-DkimDomain [[-Name] <String>] [<CommonParameters>]
# Get-DkimDomain examples
Get-DkimDomain "*" | Format-Table -Property Name,Selector,IsActive -AutoSize -Wrap
# This command queries all domains and outputs domain objects array in table format.
Get-DkimDomain "emailarchitect.net"
# This command queries domain "emailarchitect.net" and outputs domain object.
Get-DkimDomain "email*"
# This command queries domains that match "email*" and outputs domain objects array.
help Get-DkimDomain -detailed
# This command gets detailed parameters information.
Enable-DkimDomain¶
The Enable-DkimDomain cmdlet set Domain.IsActive property to $true based on the domain name, wildcard is supported in Name.
SYNTAX
Enable-DkimDomain [[-Name] <String>] [<CommonParameters>]
# Enable-DkimDomain examples
Enable-DkimDomain
# This command enables all domains.
Enable-DkimDomain "emailarchitect.net"
# This command enables domain "emailarchitect.net".
Enable-DkimDomain "email*"
# This command enables domains that match "email*".
help Enable-DkimDomain -detailed
# This command gets detailed parameters information.
Disable-DkimDomain¶
The Disable-DkimDomain cmdlet set Domain.IsActive property to $false based on the domain name, wildcard is supported in Name.
SYNTAX
Disable-DkimDomain [[-Name] <String>] [<CommonParameters>]
# Disable-DkimDomain examples
Disable-DkimDomain
# This command disables all domains.
Disable-DkimDomain "emailarchitect.net"
# This command disables domain "emailarchitect.net".
Disable-DkimDomain "email*"
# This command disables domains that match "email*".
help Disable-DkimDomain -detailed
# This command gets detailed parameters information.
Remove-DkimDomain¶
The Remove-DkimDomain cmdlet removes domain(s) based on the domain name, wildcard is supported in domain name.
SYNTAX
Remove-DkimDomain [-Name] <String> [-WhatIf] [-Confirm] [<CommonParameters>]
# Remove-DkimDomain examples
Remove-DkimDomain "emailarchitect.net"
# This command removes domain "emailarchitect.net".
Remove-DkimDomain "email*"
# This command removes domains that match "email*".
# Remove-DkimDomain "emailarchitect.net" -Confirm:$false
# This command removes domain "emailarchitect.net" without confirmation.
help Remove-DkimDomain -detailed
# This command gets detailed parameters information.
New-DkimPrivateKey¶
The New-DkimPrivateKey cmdlet creates a new private key.
SYNTAX
New-DkimPrivateKey [[-Use1024Key] <Boolean>] [[-ExportFile] <String>] [<CommonParameters>]
# New-DkimPrivateKey examples
New-DkimPrivateKey $true
# This command creates a key pair with 1024 length.
New-DkimPrivateKey $true -ExportFile 'C:\Program Files (x86)\EAExchDomainKeys\Certs\mydomain.pem'
# This command creates a key pair with 1024 length, and the key will be exported to mydomain.pem in pkcs8 format.
New-DkimPrivateKey $false
# This command creates a key pair with 2048 length.
Set-DkimDomain "emailarchitect.net" -PrivateKey (New-DkimPrivateKey)
# This command set a new private key generated by New-DkimPrivateKey to the domain.
help New-DkimPrivateKey -detailed
# This command gets detailed parameters information.
Import-DkimPrivateKey¶
The Import-DkimPrivateKey cmdlet imports a private key from pem file.
SYNTAX
Import-DkimPrivateKey [[-ImportFile] <String>] [<CommonParameters>]
# Import-DkimPrivateKey examples
Import-DkimPrivateKey "c:\my folder\privatekey.pem"
# This command imports private key from privatekey.pem.
New-DkimDomain "emailarchitect.net" -PrivateKey (Import-DkimPrivateKey "c:\my folder\privatekey.pem")
# This command imports private key from privatekey.pem and use it for the new domain.
help Import-DkimPrivateKey -detailed
# This command gets detailed parameters information.
Export-DkimPrivateKey¶
The Export-DkimPrivateKey cmdlet exports a private key to pem file.
SYNTAX
Export-DkimPrivateKey [[-PrivateKey] <String>] [[-ExportFile] <String>] [<CommonParameters>]
# Export-DkimPrivateKey examples
Export-DkimPrivateKey (Get-DkimDomain "emailarchitect.net").PrivateKey -ExportFile "c:\my folder\privatekey.pem"
# This command exports the private key from domain "emailarchitect.net".
help Export-DkimPrivateKey -detailed
# This command gets detailed parameters information.
Export-DkimPublicKey¶
The Export-DkimPublicKey cmdlet exports public key of the domain in DNS record format.
SYNTAX
Export-DkimPublicKey [-Name] <String> [<CommonParameters>]
# Export-DkimPublicKey examples
Export-DkimPublicKey "emailarchitect.net"
# This command exports the public key from domain "emailarchitect.net".
help Export-DkimPublicKey -detailed
# This command gets detailed parameters information.
Get-DkimLogLevel¶
The Get-DkimLogLevel cmdlet gets current DKIM log level.
SYNTAX
Get-DkimLogLevel [<CommonParameters>]
# Get-DkimLogLevel examples
Get-DkimLogLevel
# This command outputs current dkim log level (OnlyError|FullDebug|CrashDebug).
help Get-DkimLogLevel -detailed
# This command gets detailed parameters information.
Set-DkimLogLevel¶
The Set-DkimLogLevel cmdlet sets current DKIM log level.
SYNTAX
Set-DkimLogLevel [-LogLevel] <String> [<CommonParameters>]
# Set-DkimLogLevel examples
Set-DkimLogLevel FullDebug
# This command sets current log level to full debug.
help Set-DkimLogLevel -detailed
# This command gets detailed parameters information.
Get-DkimLicense¶
The Get-DkimLicense cmdlet gets current DKIM license information.
SYNTAX
Get-DkimLicense [<CommonParameters>]
# Get-DkimLicense examples
Get-DkimLicense
# This command outputs current dkim license information.
help Get-DkimLicense -detailed
# This command gets detailed parameters information.
Set-DkimLicense¶
The Set-DkimLicense cmdlet sets the license code.
SYNTAX
Set-DkimLicense [-LicenseCode] <String> [<CommonParameters>]
# Set-DkimLicense examples
Set-DkimLicense "your license code"
# This command sets license code.
help Set-DkimLicense -detailed
# This command gets detailed parameters information.
Appendix: DKIM installation¶
C#, VB.NET can be used to manage DKIM programmingly.
You can find the full sample project in DKIM installation path\DkimConfigSample.
